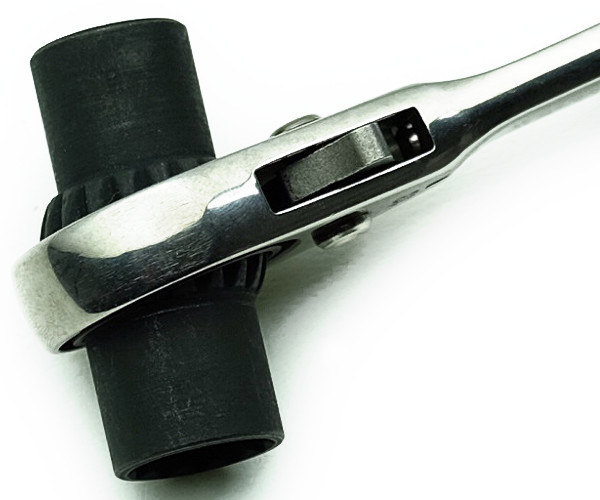

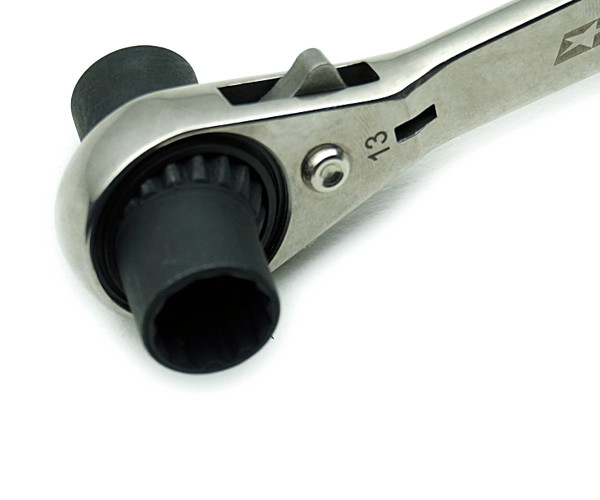

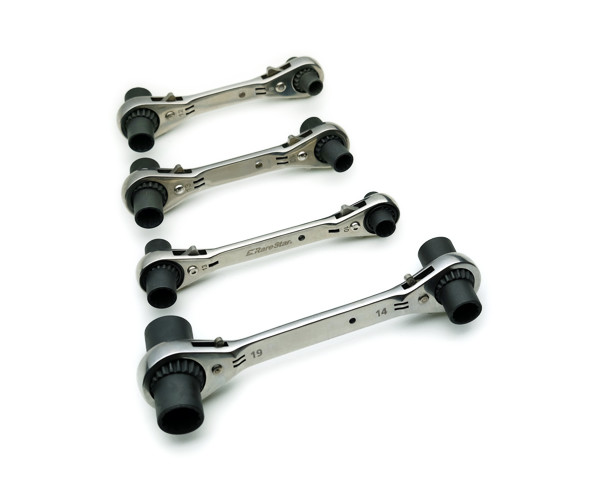

Stainless Ball Ratchet(long gear)




Ball Ratchet

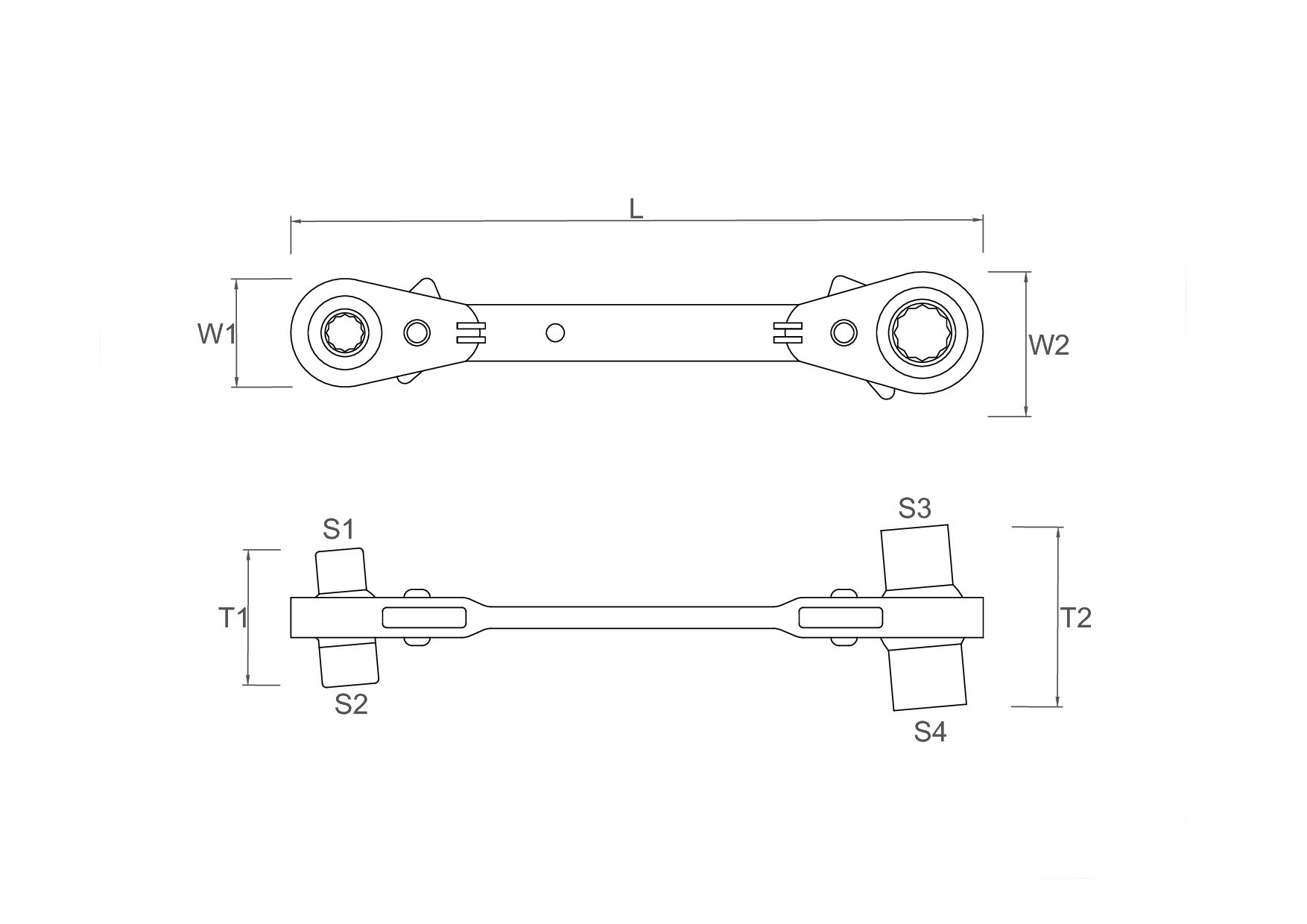

ITEM NO. SIZE S1 S2 S3 S4 L W1 W2 T1 T2
  (mm)         (mm) (mm) (mm) (mm) (mm)
UWD8023 8x10˙12x13 10 8 13 12 140 27.3 30.7 34.2 45.0
UWD8023-L 8x10˙12x13 10 8 13 12 170 27.3 30.7 34.2 45.0
UWD0234 10x12˙13x14 12 10 14 13 150 29.8 32.7 44.4 47.3
UWD3791 13x17˙19x21 17 13 21 19 215 37.4 45.0 53.6 67.4
UWD4791 14x17˙19x21 17 14 21 19 215 37.4 45.0 53.6 67.4
