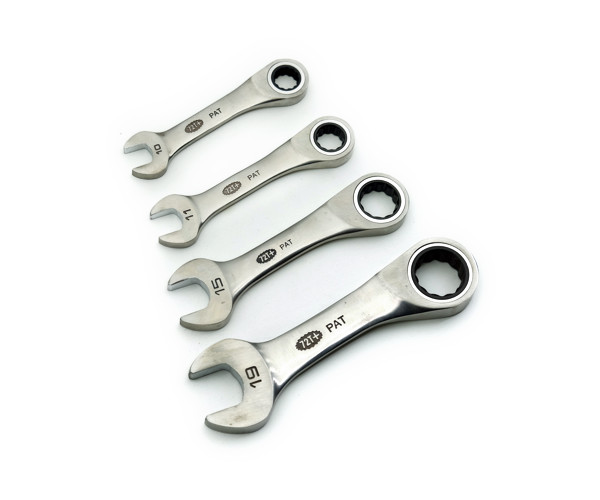

| Subby | ||||||||

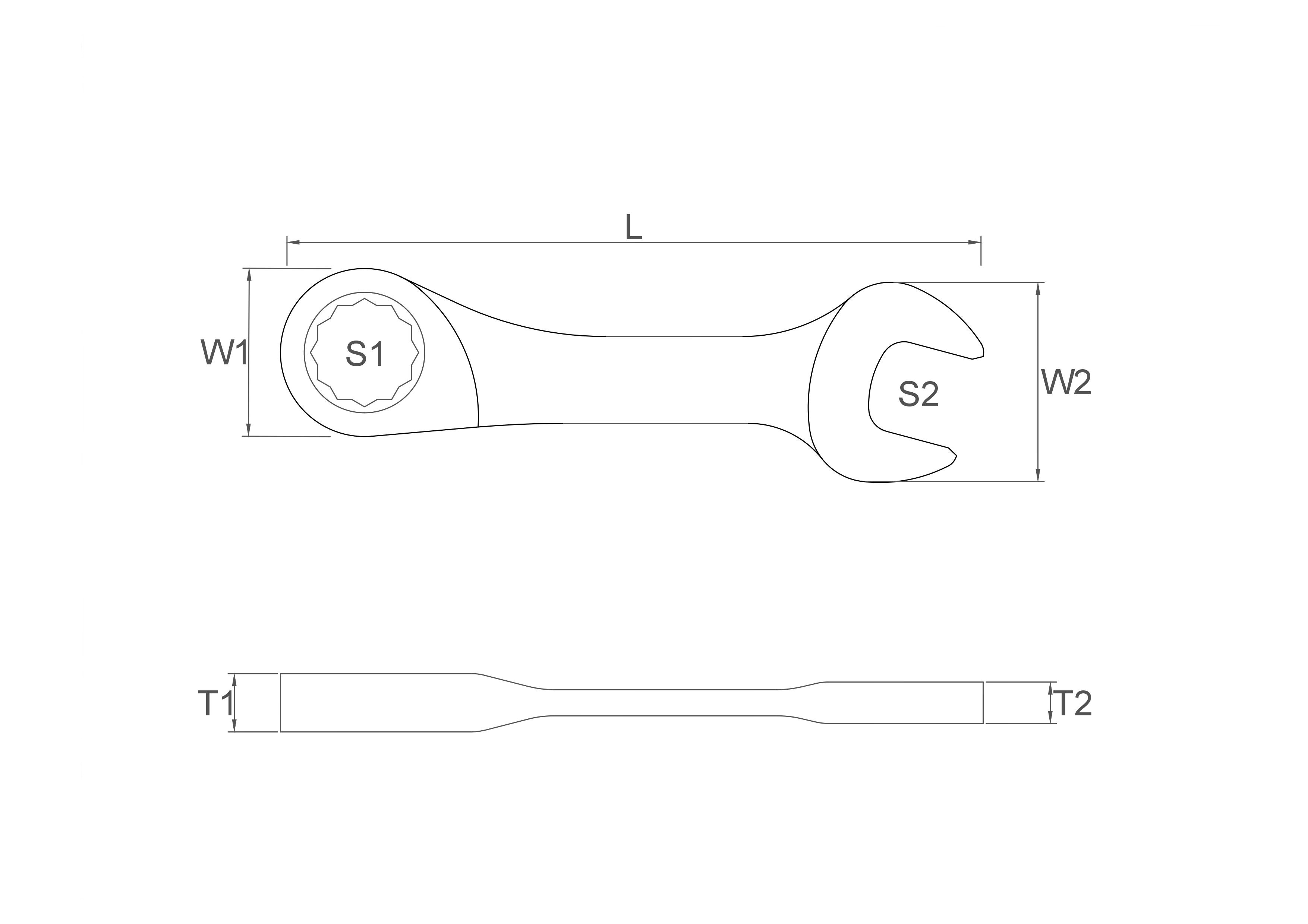

| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| SCO-10 | 10 | 10 | 10 | 94 | 20.0 | 23.0 | 10.0 | 6.8 |
| SCO-11 | 11 | 11 | 11 | 102 | 22.0 | 24.0 | 10.0 | 6.8 |
| SCO-12 | 12 | 12 | 12 | 105 | 24.0 | 26.0 | 10.0 | 7.3 |
| SCO-13 | 13 | 13 | 13 | 107 | 24.0 | 30.0 | 10.0 | 7.3 |
| SCO-14 | 14 | 14 | 14 | 114 | 27.0 | 30.0 | 10.0 | 7.8 |
| SCO-15 | 15 | 15 | 15 | 118 | 27.0 | 32.0 | 10.0 | 7.8 |
| SCO-16 | 16 | 16 | 16 | 122 | 30.0 | 35.0 | 13.0 | 8.8 |
| SCO-17 | 17 | 17 | 17 | 126 | 30.0 | 35.0 | 13.0 | 8.8 |
| SCO-18 | 18 | 18 | 18 | 130 | 38.0 | 37.0 | 13.0 | 8.8 |
| SCO-19 | 19 | 19 | 19 | 138 | 38.0 | 39.0 | 13.0 | 8.8 |
| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| SCO-30 | 3/8" | 3/8" | 3/8" | 94 | 20.0 | 23.0 | 10.0 | 6.8 |
| SCO-35 | 7/16" | 7/16" | 7/16" | 102 | 22.0 | 24.0 | 10.0 | 6.8 |
| SCO-40 | 1/2" | 1/2" | 1/2" | 107 | 24.0 | 30.0 | 10.0 | 7.3 |
| SCO-45 | 9/16" | 9/16" | 9/16" | 114 | 27.0 | 30.0 | 10.0 | 7.8 |
| SCO-50 | 5/8" | 5/8" | 5/8" | 122 | 30.0 | 35.0 | 13.0 | 8.8 |
| SCO-55 | 11/16" | 11/16" | 11/16" | 126 | 30.0 | 35.0 | 13.0 | 8.8 |
| SCO-60 | 3/4" | 3/4" | 3/4" | 138 | 38.0 | 39.0 | 13.0 | 8.8 |
