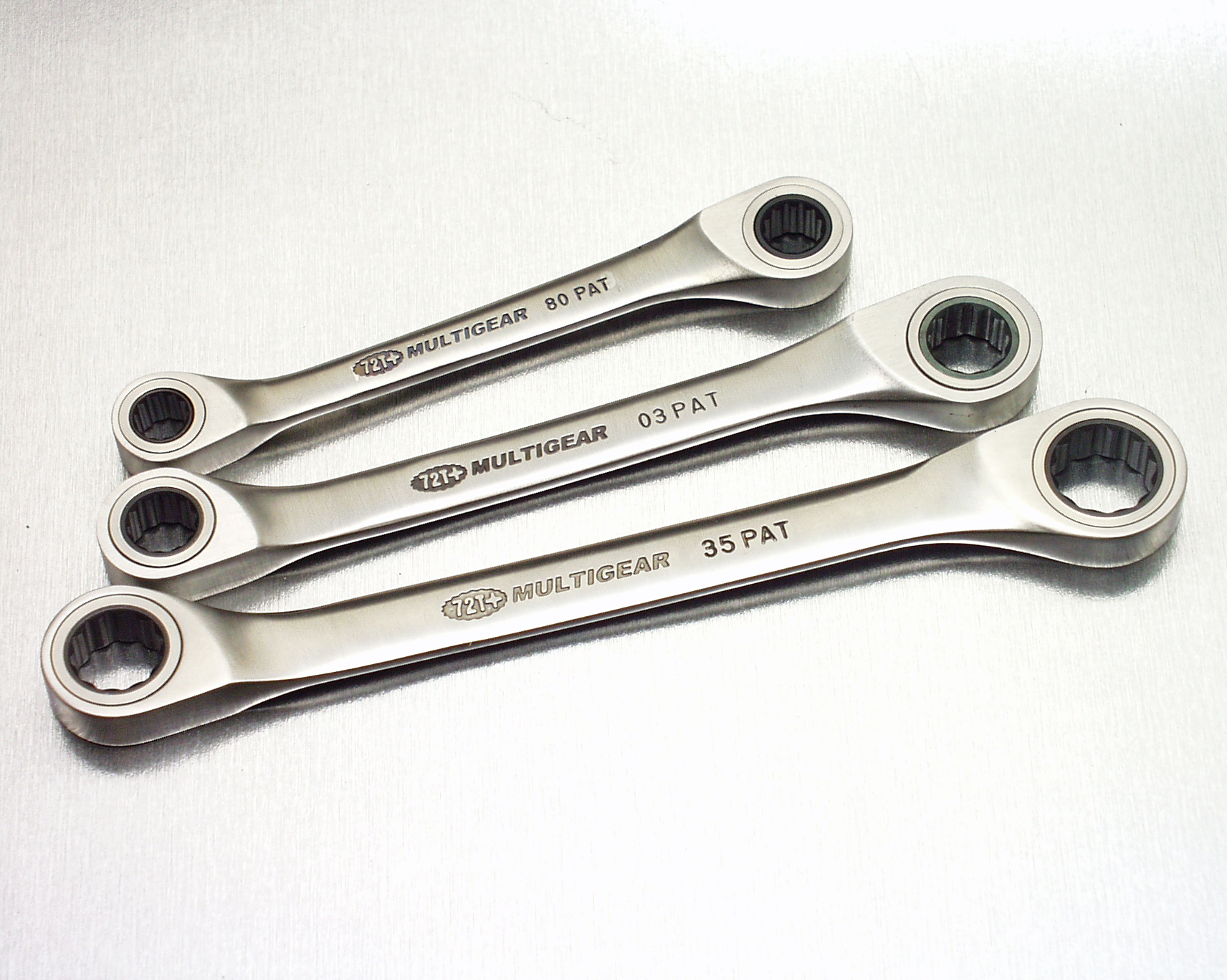

| Double Box | ||||||||

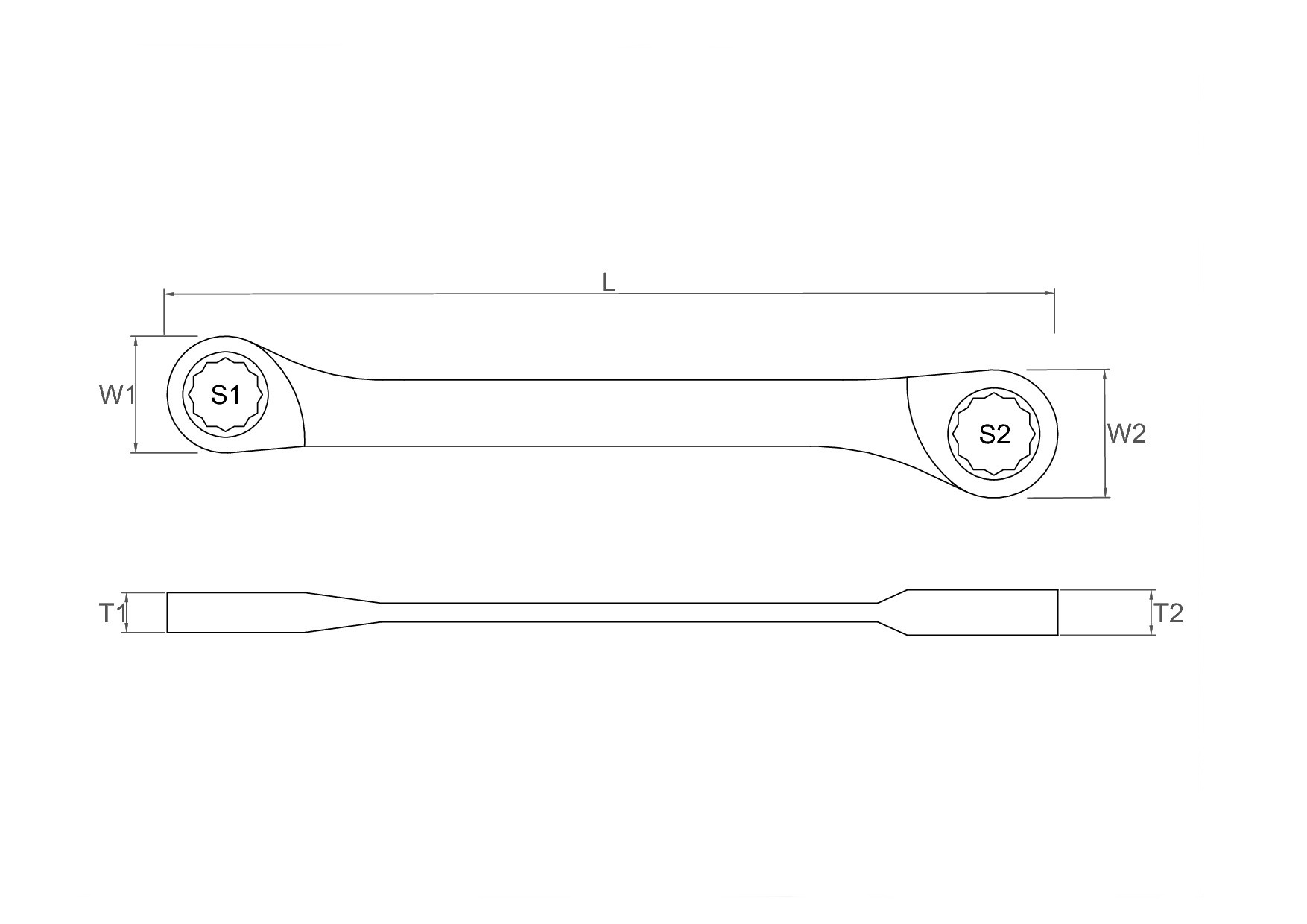

| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DB0809 | 8x9 | 8 | 9 | 130 | 17 | 20 | 9 | 10 |
| DB0810 | 8x10 | 8 | 10 | 130 | 17 | 20 | 9 | 10 |
| DB0910 | 9x10 | 9 | 10 | 140 | 20 | 20 | 10 | 10 |
| DB0911 | 9x11 | 9 | 11 | 150 | 20 | 22 | 10 | 10 |
| DB1011 | 10x11 | 10 | 11 | 150 | 20 | 22 | 10 | 10 |
| DB1012 | 10x12 | 10 | 12 | 160 | 20 | 24 | 10 | 10 |
| DB1013 | 10x13 | 10 | 13 | 160 | 20 | 24 | 10 | 10 |
| DB1112 | 11x12 | 11 | 12 | 170 | 20 | 24 | 10 | 10 |
| DB1113 | 11x13 | 11 | 13 | 170 | 22 | 24 | 10 | 10 |
| DB1213 | 12x13 | 12 | 13 | 180 | 24 | 24 | 10 | 10 |
| DB1214 | 12x14 | 12 | 14 | 190 | 24 | 27 | 10 | 10 |
| DB1215 | 12x15 | 12 | 15 | 190 | 24 | 27 | 10 | 10 |
| DB1314 | 13x14 | 13 | 14 | 190 | 24 | 27 | 10 | 10 |
| DB1315 | 13x15 | 13 | 15 | 190 | 24 | 27 | 10 | 10 |
| DB1415 | 14x15 | 14 | 15 | 200 | 27 | 27 | 10 | 10 |
| DB1416 | 14x16 | 14 | 16 | 210 | 27 | 30 | 10 | 13 |
| DB1417 | 14x17 | 14 | 17 | 210 | 27 | 30 | 10 | 13 |
| DB1516 | 15x16 | 15 | 16 | 210 | 27 | 30 | 10 | 13 |
| DB1517 | 15x17 | 15 | 17 | 210 | 27 | 30 | 10 | 13 |
| DB1617 | 16x17 | 16 | 17 | 220 | 30 | 30 | 13 | 13 |
| DB1618 | 16x18 | 16 | 18 | 230 | 30 | 33 | 13 | 13 |
| DB1619 | 16x19 | 16 | 19 | 230 | 30 | 33 | 13 | 13 |
| DB1718 | 17x18 | 17 | 18 | 230 | 30 | 33 | 13 | 13 |
| DB1719 | 17x19 | 17 | 19 | 230 | 30 | 33 | 13 | 13 |
| DB1819 | 18x19 | 18 | 19 | 240 | 33 | 33 | 13 | 13 |
| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| DB2530 | 5/16"x3/8" | 5/16" | 3/8" | 130 | 17.0 | 20.0 | 9.0 | 10.0 |
| DB3035 | 3/8"x7/16" | 3/8" | 7/16" | 150 | 20.0 | 22.0 | 10.0 | 10.0 |
| DB3540 | 7/16"x1/2" | 7/16" | 1/2" | 170 | 22.0 | 24.0 | 10.0 | 10.0 |
| DB4045 | 1/2"x9/16" | 1/2" | 9/16" | 190 | 24.0 | 27.0 | 10.0 | 10.0 |
| DB4550 | 9/16"x5/8" | 9/16" | 5/8" | 210 | 27.0 | 30.0 | 10.0 | 13.0 |
| DB4555 | 9/16"x11/16" | 9/16" | 11/16" | 210 | 27.0 | 30.0 | 10.0 | 13.0 |
| DB5055 | 5/8"x11/16" | 5/8" | 11/16" | 220 | 30.0 | 30.0 | 13.0 | 13.0 |
| DB5060 | 5/8"x3/4" | 5/8" | 3/4" | 230 | 30.0 | 33.0 | 13.0 | 13.0 |
| DB5560 | 11/16"x3/4 | 11/16" | 3/4" | 230 | 30.0 | 33.0 | 13.0 | 13.0 |
